SPECIFICATIONS

Battery Included: no

Brand Name: Heltecbms

Certification: CE

DIY Supplies: Electrical

High-concerned chemical: none

Power Source: Ac

Semi-finishedproduct: No

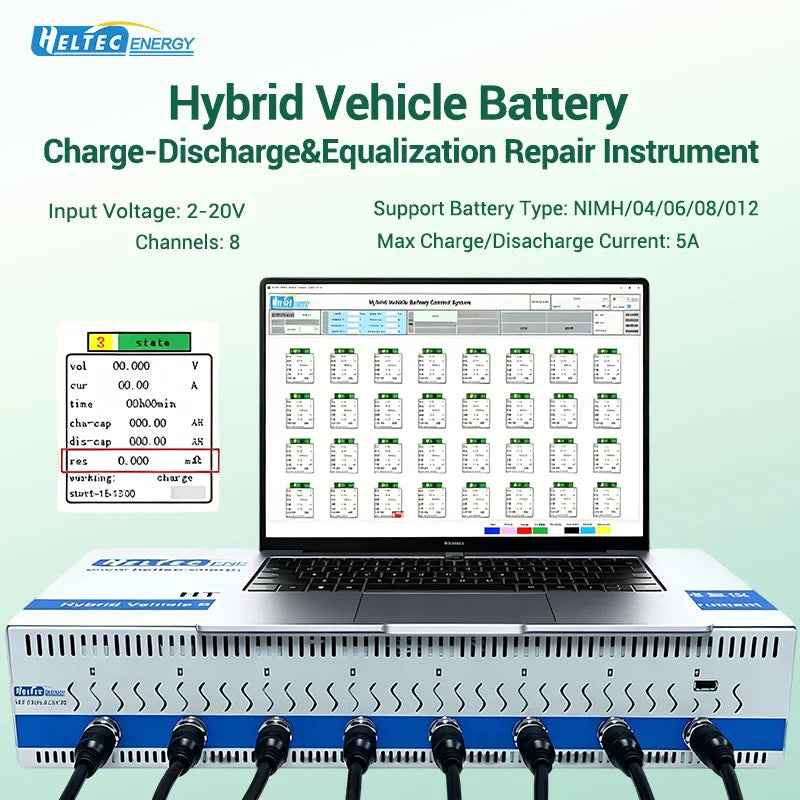

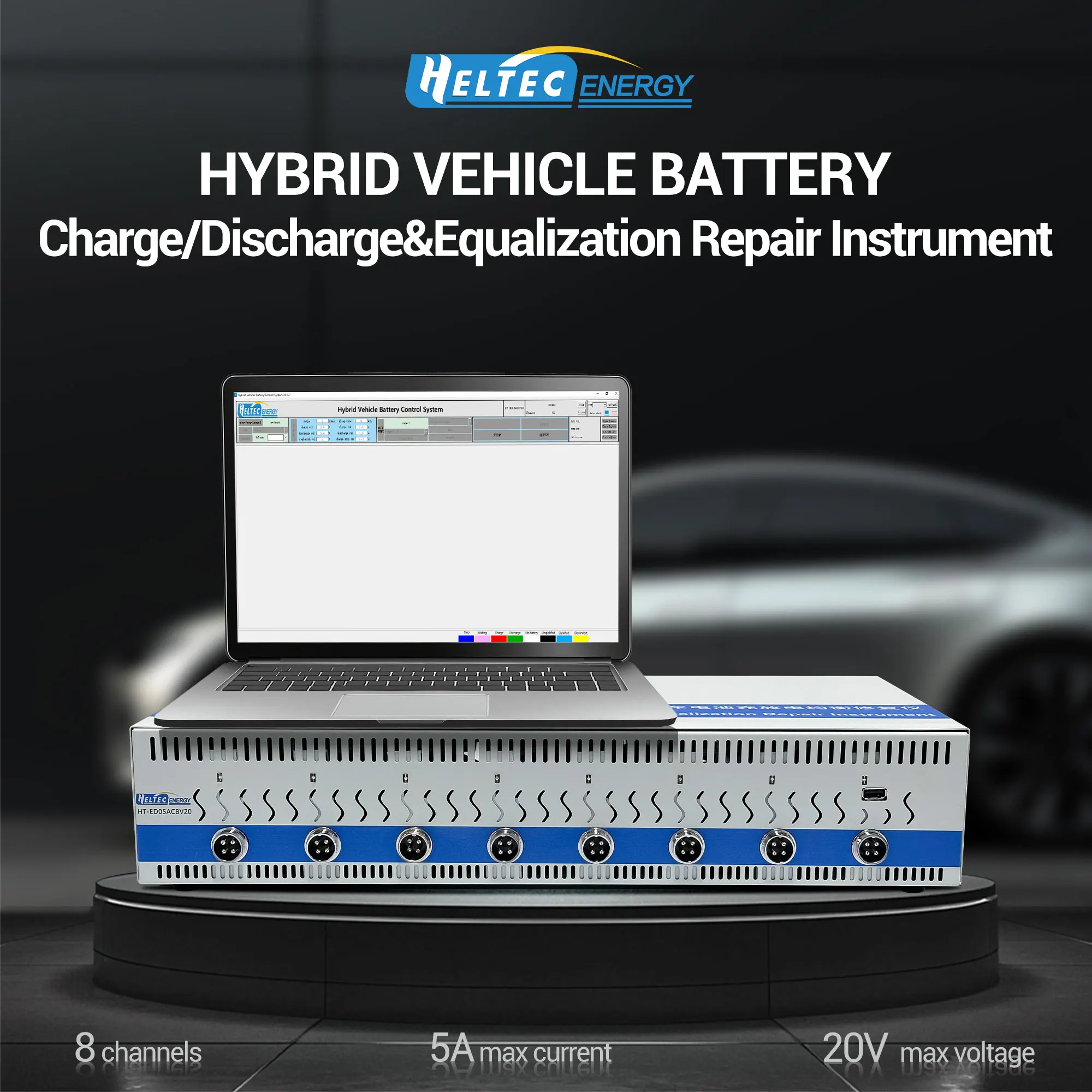

Heltec Energy HT-ED05AC8V20 Hybrid Vehicle Battery Tester

Professional 8-Channel Charge-Discharge & Equalization Repair Instrument

Key Features

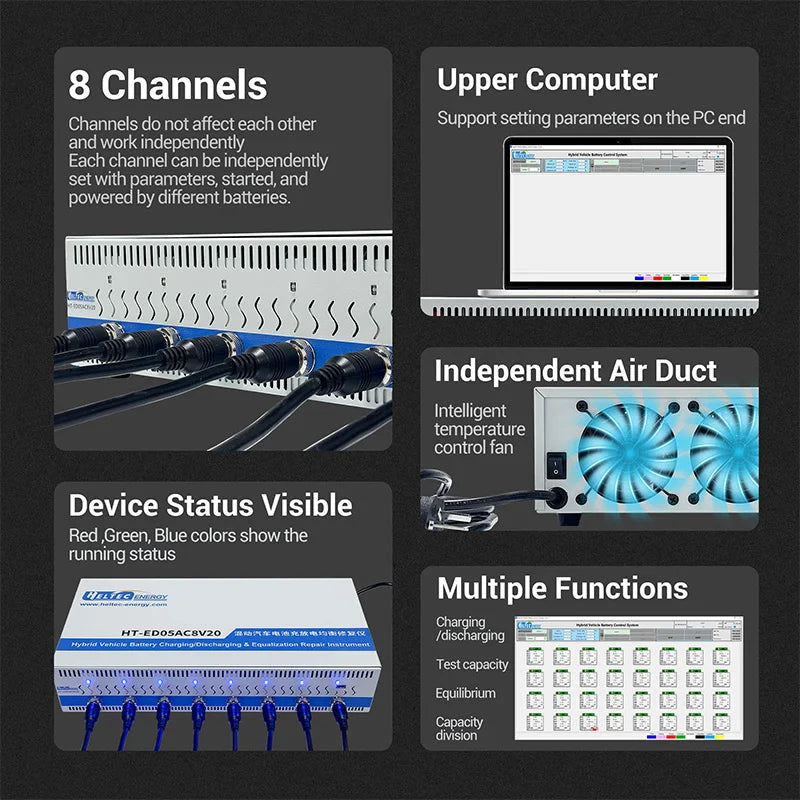

• 8 Independent Channels

Channels work without mutual interference; each supports separate parameter setting, independent startup, and compatibility with different batteries.

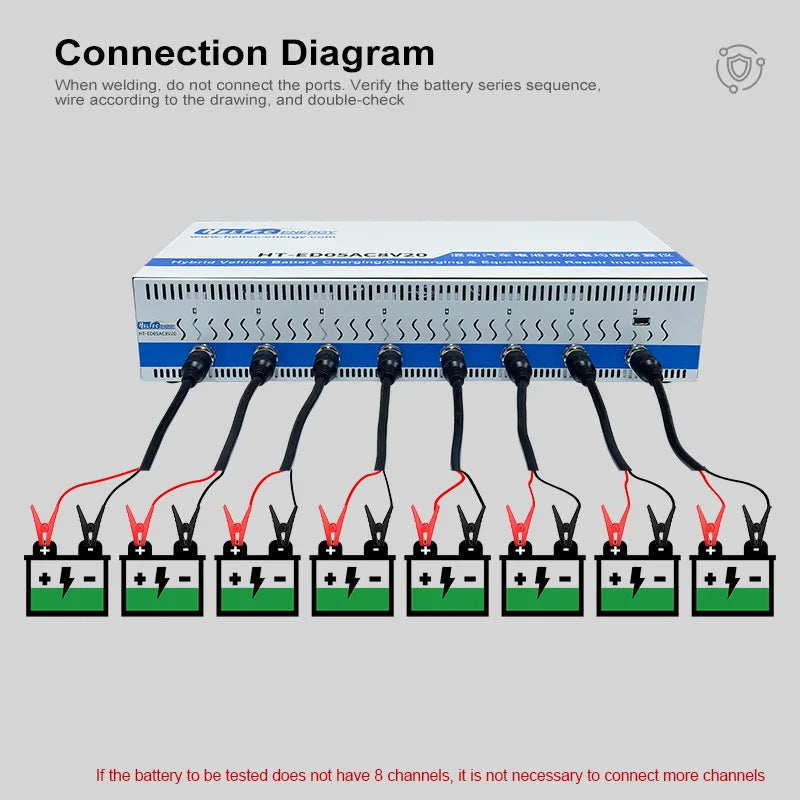

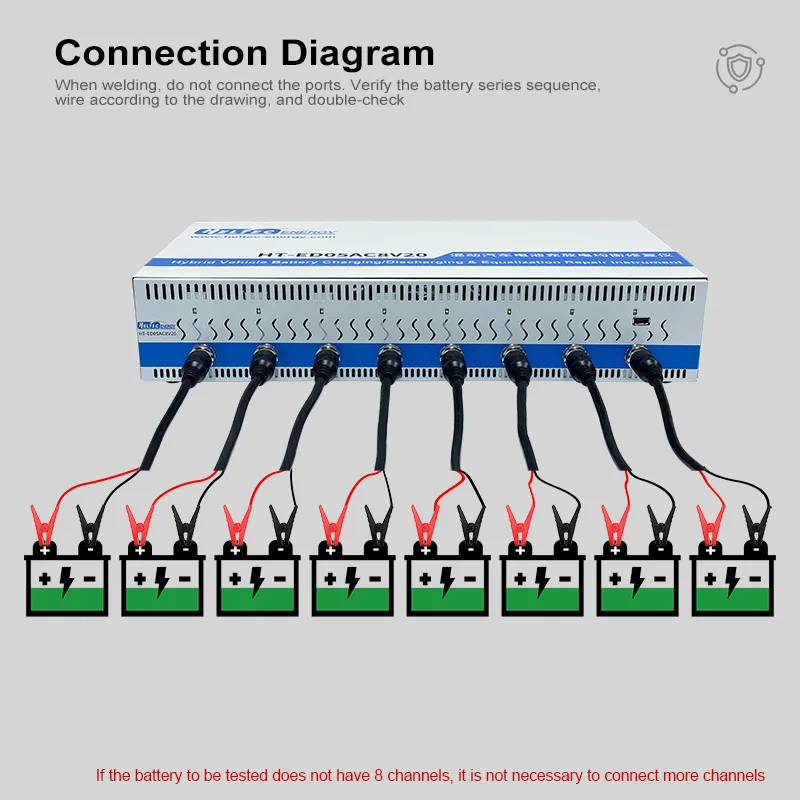

Full-channel isolation test: Directly test all cells in a battery pack without disconnecting connections (modular design enables series detection).

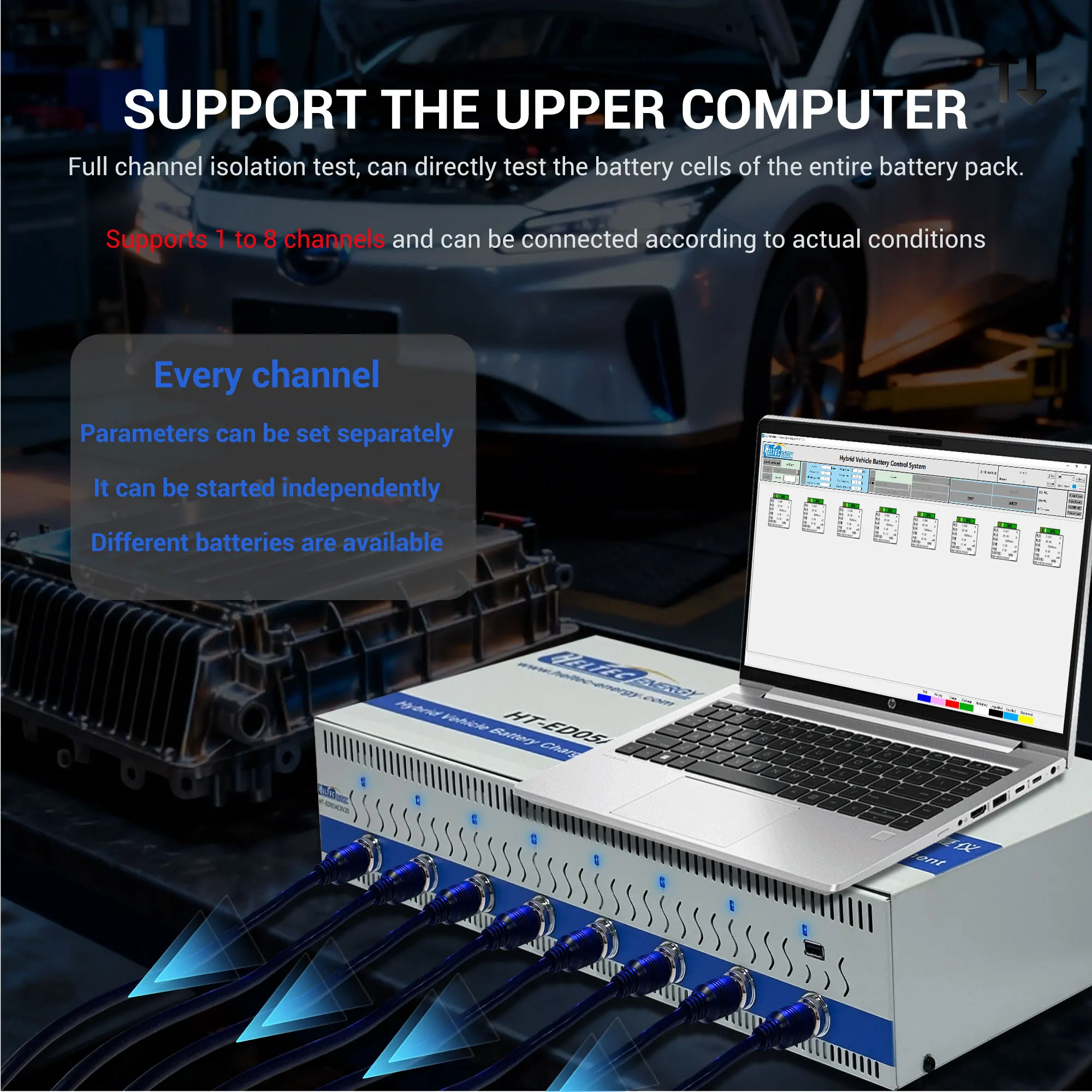

• PC-Controlled Operation

Connect to a Windows (XP+) computer (1600×900+ resolution) for centralized parameter setting & real-time monitoring.

One computer can control multiple devices (serial connection, custom equipment required for cascading).

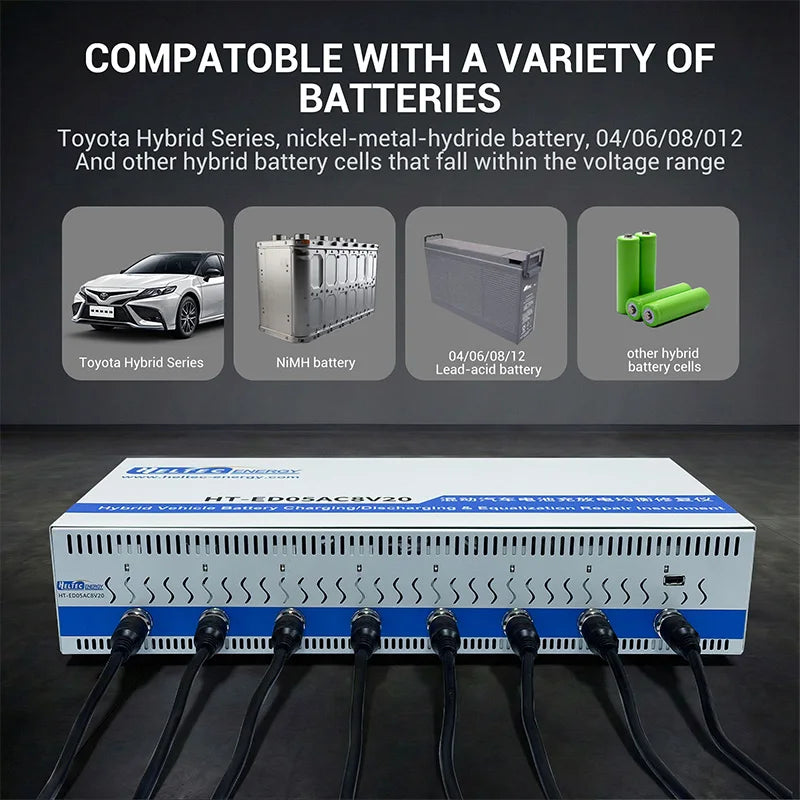

• Comprehensive Battery Compatibility

  Supports Toyota hybrid models (Corolla, Camry, Prius) & battery types:

1. Nickel-metal hydride (NiMH) batteries

2. 04/06/08/12 hybrid battery cells (2-20V voltage range)




• Core Functions

Charge/Discharge0.2-5A current range; 5-18V termination voltage; 0.01-99999.9AH capacity test range.

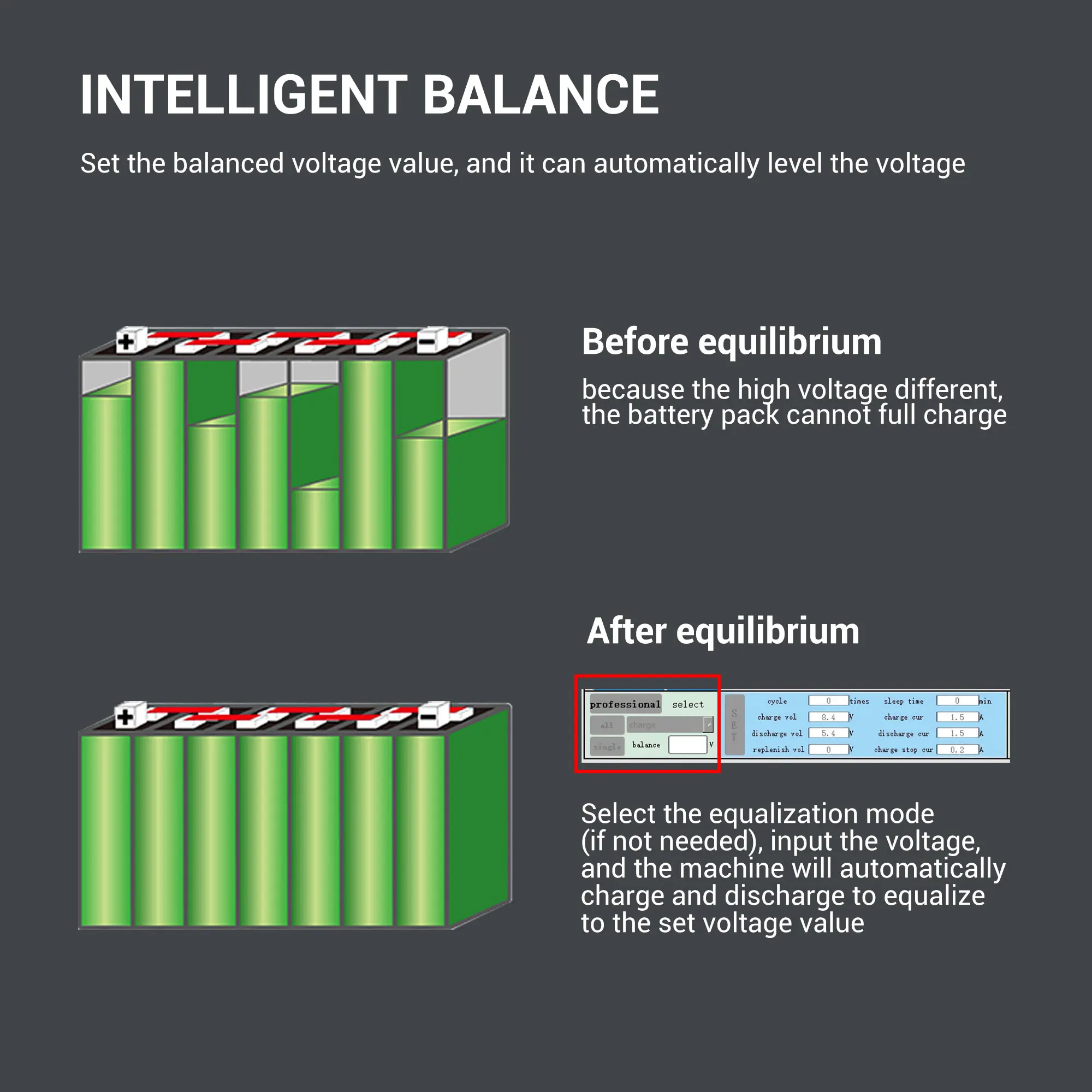

Intelligent EqualizationSet target voltage; automatically levels cell voltages to resolve uneven charging issues.

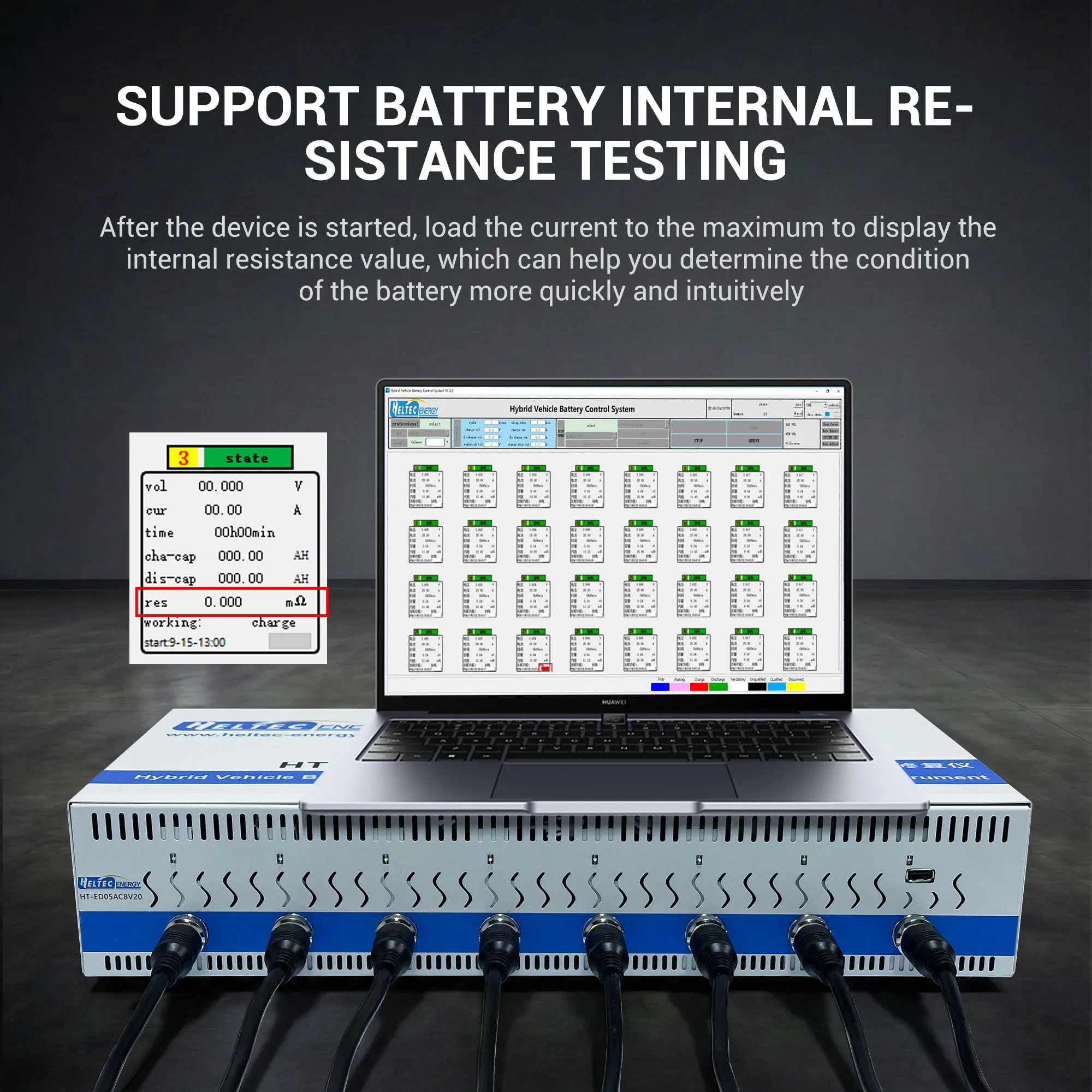

Internal Resistance TestinLoads max current on startup to display internal resistance (nΩ), enabling quick battery condition assessment.

• Reliable Performance

Power Specs: AC220V input; 25W (standby/discharge), 550W (full-load charging).

Safety: 1000V AC channel-to-channel pressure resistance (2min no abnormality).

Cooling: Multi-fan intelligent temperature control (real-time temp monitoring; high-temp alarm/shutdown).

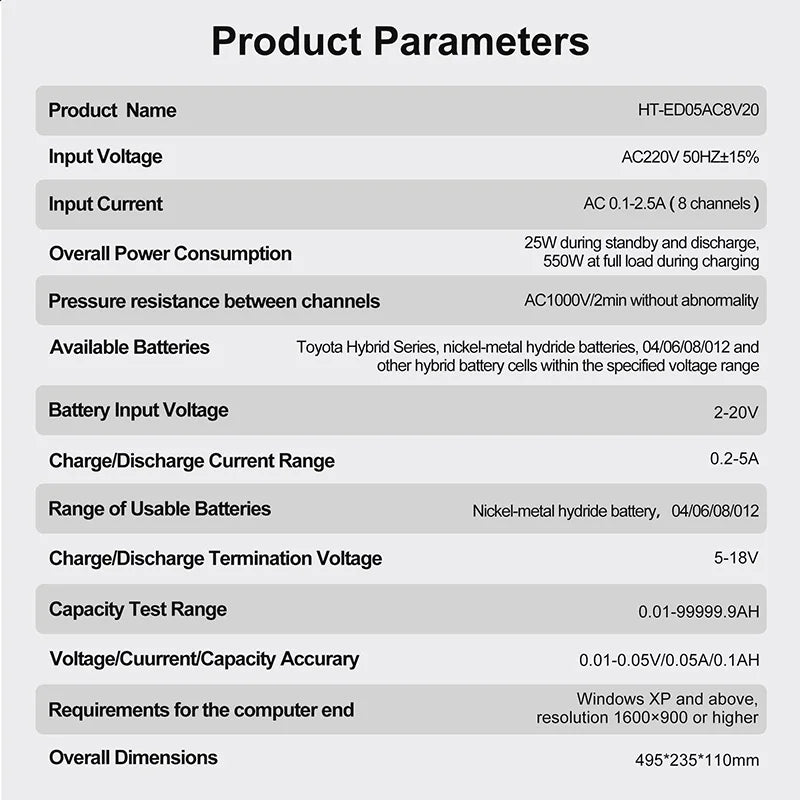

Product Parameters

ModelHT-ED05AC8V20

Input VoltageAC220V 50HZ±15%

Input CurrentAC 0.1-2.5A (8 channels)

Accuracy0.01-0.05V / 0.05A / 0.1AH

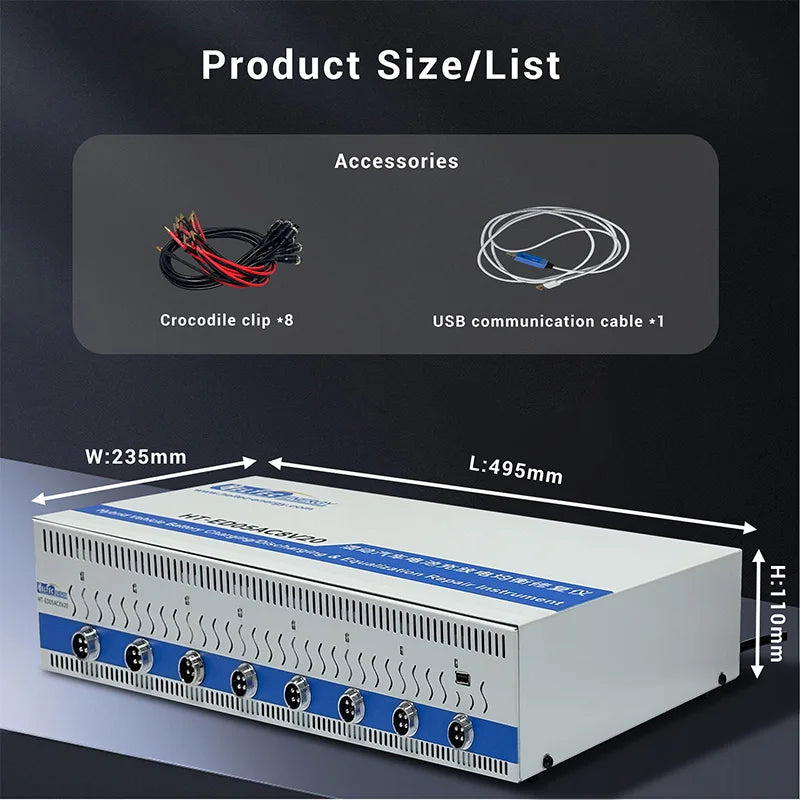

Dimensions495×235×110mm

Application Scenarios

Ideal for auto repair shops, battery maintenance centers, and hybrid vehicle service providers — efficiently test, balance, and repair hybrid battery packs to restore performance.
