Note: The 128G and 64G USB drives are optional accessories.

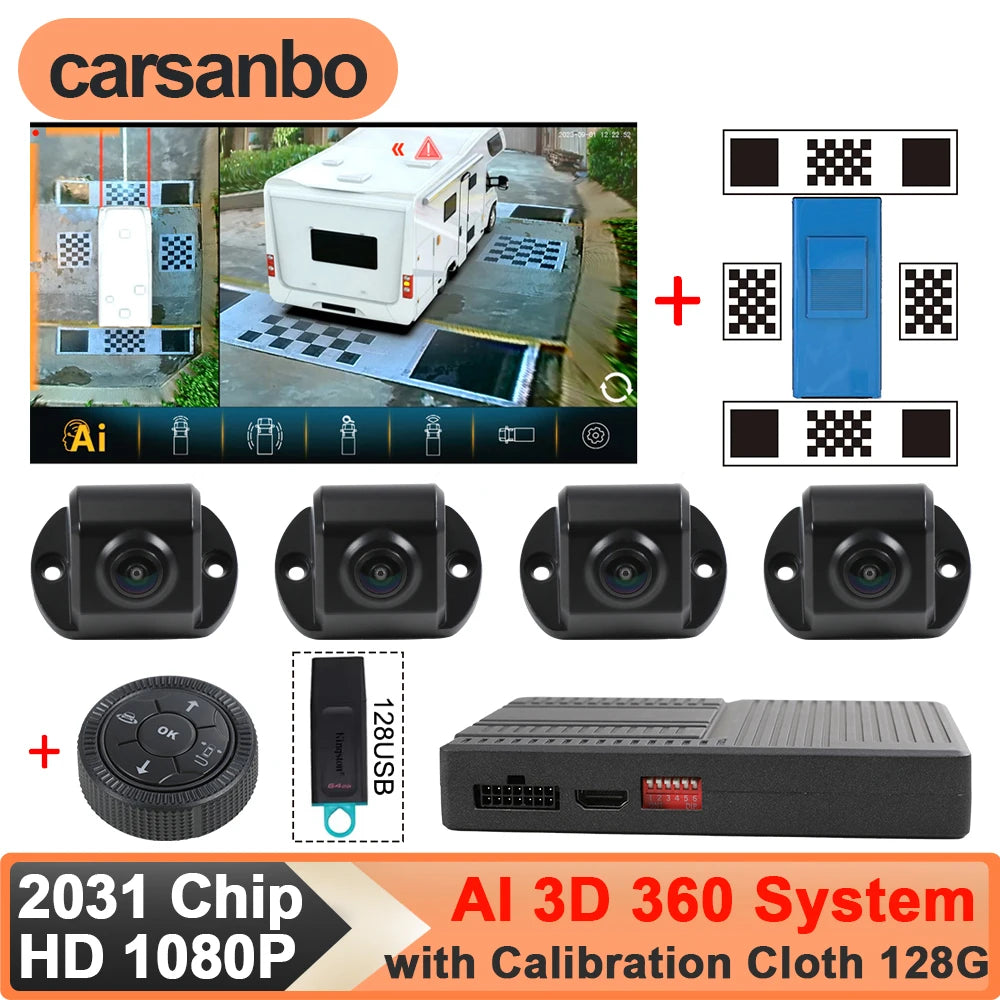

Digital HD Ai 3D 360 Bird Eye View Camera System for RV/BUS/Truck

Product Parameters:
1) Ai intelligent recognition of pedestrians and vehicles.
2) Display distance and direction of movement from other vehicles and pedestrians.
3) Ai intelligence alerts through color changes and sound.
4) 3.5D\3D\2D multiple view display.
5) Multiple styles 3D car model image available.
6) 4 way video recording and playback, 4-in-1 High-definition video real-time recording.
7) Record Video Files Using H.265 Compression Format.
8) Support AHD, TVI, CVI, HDMI, VGA and CVBS video output, easy change in menu. The original car display screen supports one of the above, which can be connected.
9) Parking recording mode with intelligent voltage detection.
10) Voltage Support: DC9-30V
11) OSD Language: Chinese, Korean, English, German
Importance: Our 360 System not including Monitor.
Purchase Notice:

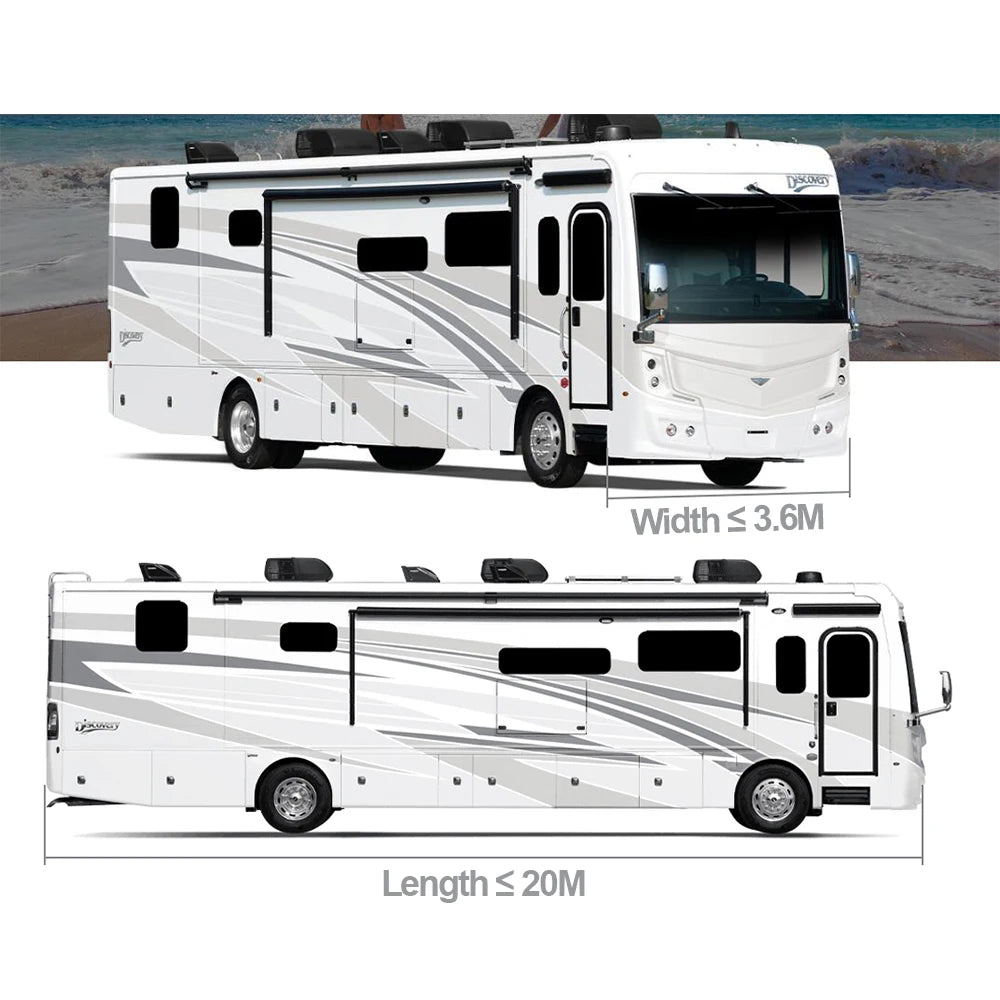

1. This system Max support Vehicles size is (Length≤20M, Width≤3.6M). The default configuration supports cars that are 13 meters long and 2.5 meters wide. The extension cable lengths for our cameras are (5 meters for the front, 10 meters for both the left and right sides, and 15 meters for the back). We have a separate 20 meter extension cable, but it needs to be purchased separately.

2. Please check if your monitor with RCA or Aviation Head(4PIN) video input or not. Our 360 System Support CVBS/AHD/TVI/HDMI signal output, Aftermarket radio or monitor is works well for our 360 camera system.if the monitor support AHD input that will be more HD quality.

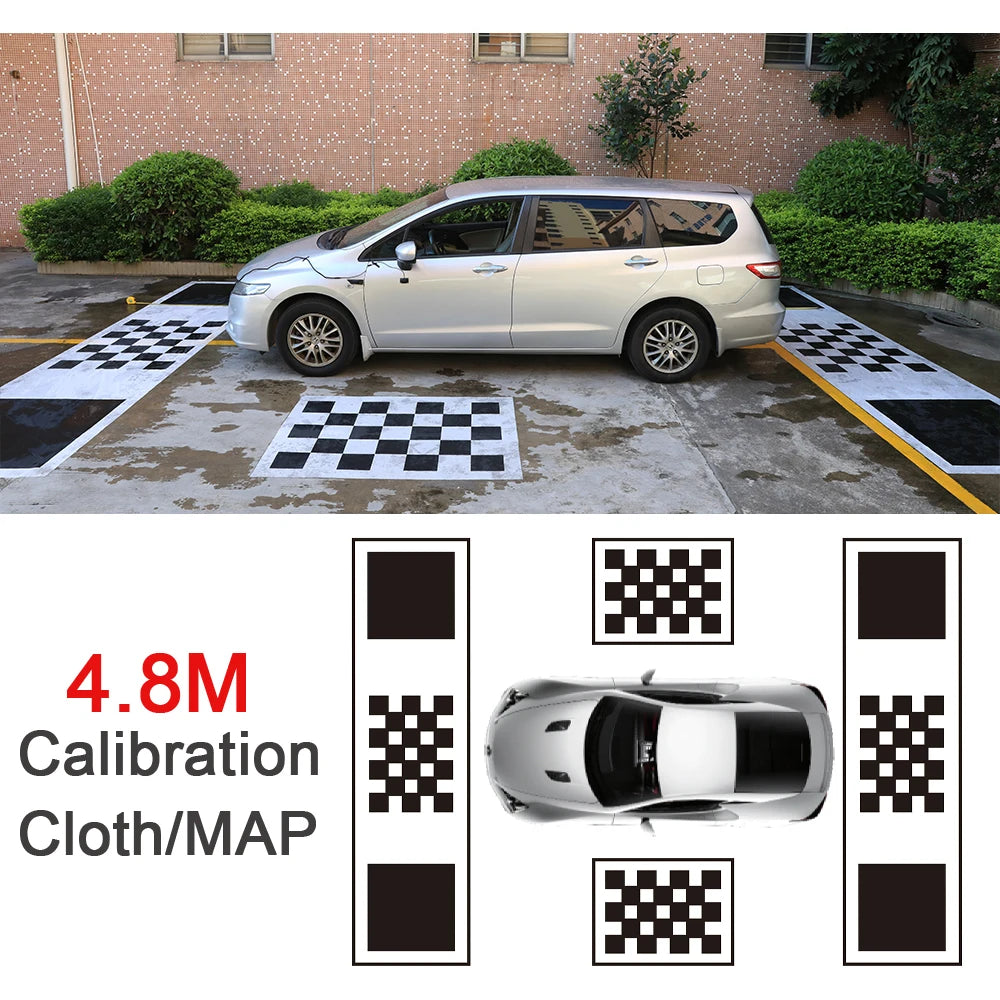

3. If your car width exceeds 2.5 meters, you need to cut the calibration cloth or purchase a larger specification of calibration cloth in order to calibrate it.

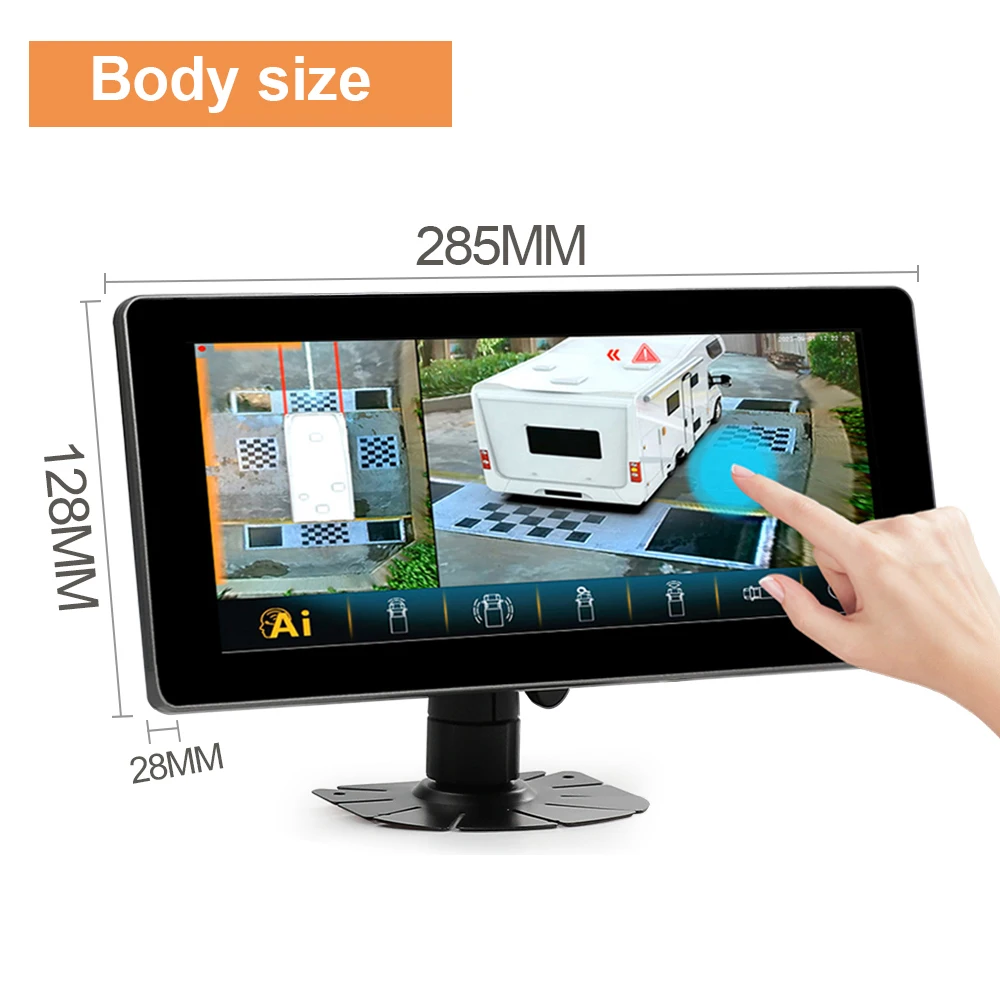

4. Our store has a 10.25 touch screen AHD monitor with a resolution of 1920x720P, which is perfectly compatible with this panoramic and supports touch function to control 360 camera system. You can choose to purchase it If needed.

Main Feature:
Latest upgraded features in 2025

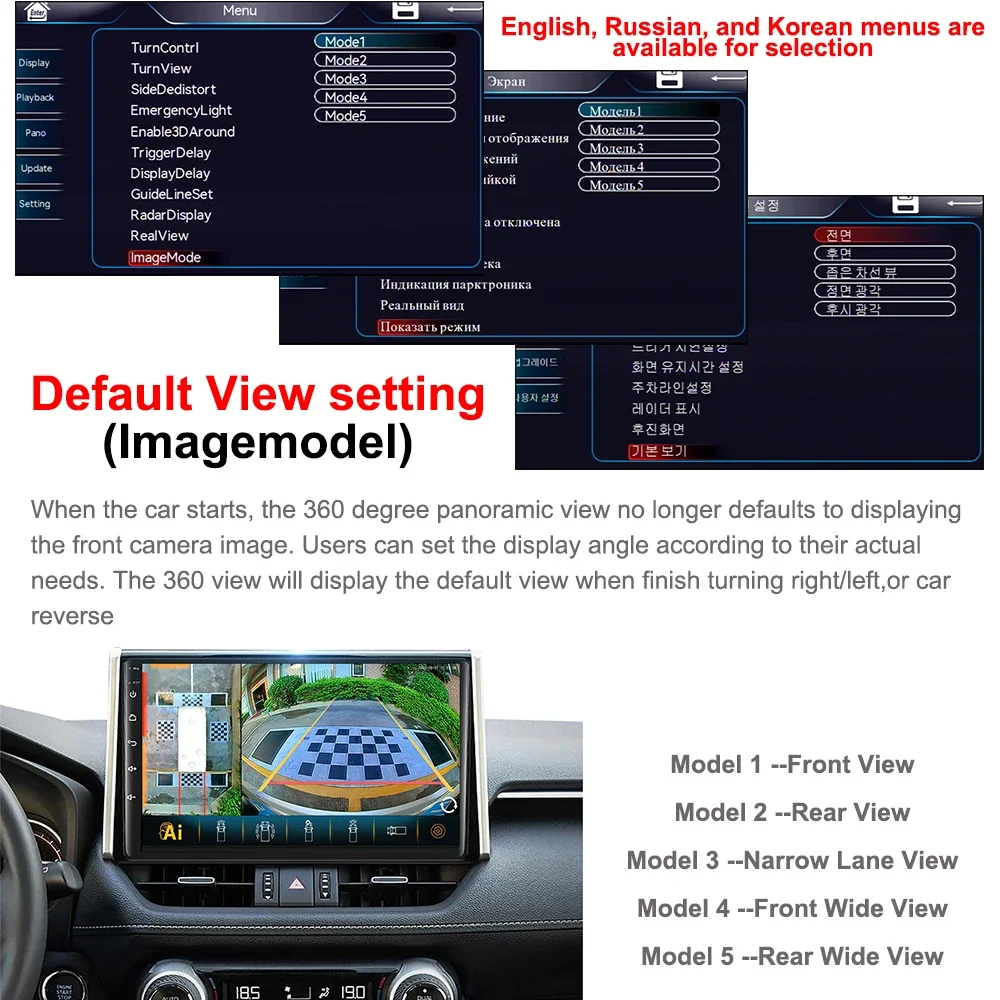

In 2024, we collected a lot of customer demands. After installing our 360 panorama, when driving normally, the 360 panorama interface displays the image of the front camera. However, when there is a trailer behind our car, I would like to see the situation behind the car. When the car moves forward, it works like a streaming rearview mirror. After the unremitting efforts of our engineering personnel, we finally developed this function in 2025. Now users can set the default angle by themselves. We have 5 modes in the system, and you can set them according to your actual needs.

We have added paper manuals in German and Korean, and installation and calibration videos can be found on our YouTube channel (carsanbo).

1. AI Intelligent Recognition Of Pedestrians And Vehicles

On the left side of the interface, different colors are used to indicate the direction of objects and their distance from the camera, The right interface displays the specific distance between a single camera and an object.

The default state is that all four cameras are equipped with AI function.

If you need to enable some of them, you can make the following settings.

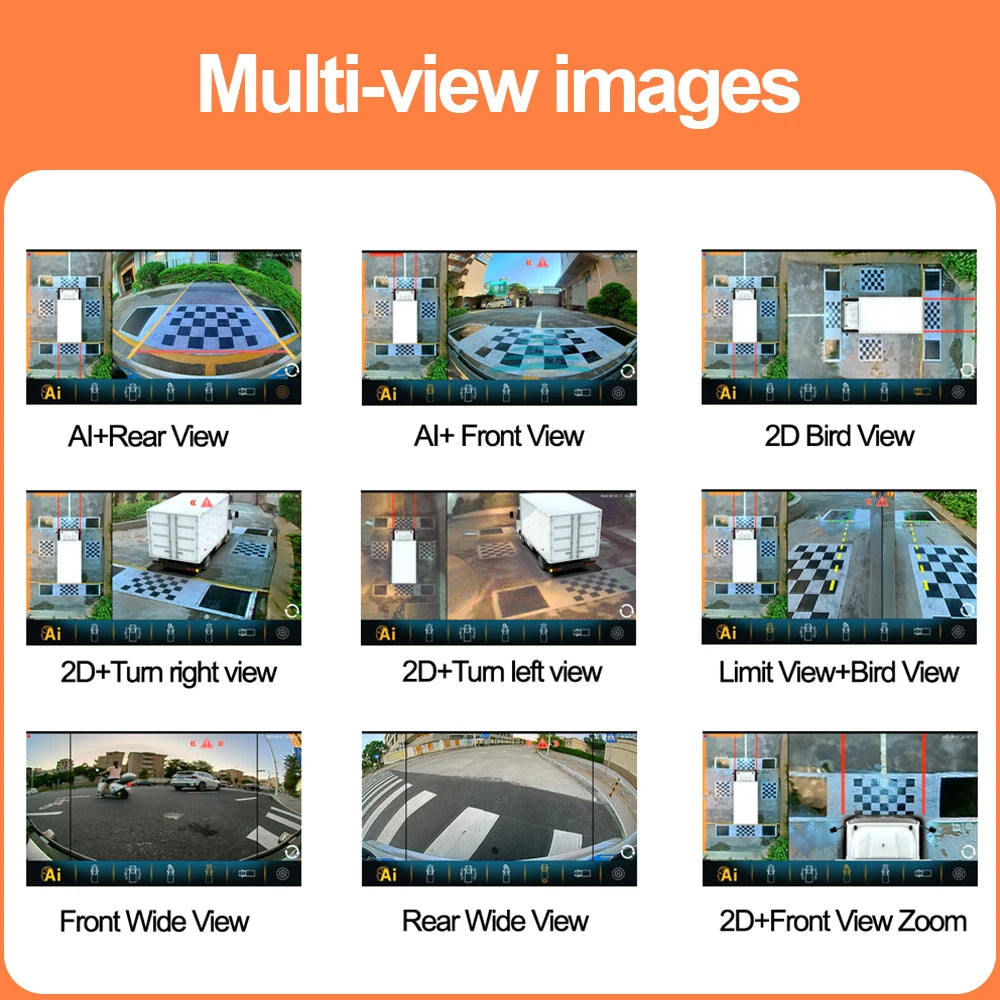

2. Automatic switch view while driving the car

When the car is turning left, right, reversing, or moving forward, corresponding camera images are provided to assist you in driving and prevent accidents from happening

①Car turning left,the 360 view as below

②Car turning right,the 360 view as below

③Car reverse,the 360 view as below

④ Car forward,the 360 view as below

⑤When double clicking on the car emergency light, display left and right 2D view

2.1 Knob remote control to switch viewing angles

You can also switch view by the remote control.

Press this button, the Car image will 360 degree view rotates once.

Rotating the knob switch can switch between different views.

The OK button can switch the secondary viewing angle.

Press this button to quickly enter the limited width view.

By entering the menu settings through the remote control, more perspectives can be set, such as 2D, 3D, 3.5D perspective, and reverse mode 2.

3. Where to install Camera?

The front camera is usually installed in the center position of the bumper, and it is also possible to install it in a higher position for different car models. The left and right cameras can be installed in the center of the side roof near the cab. If you are unsure of the installation position, it is best to fix the camera with adhesive tape for calibration. If the calibration effect is successful, then fix the camera with screws.

This is a comparison of the effect before and after calibration. Calibration is crucial after installing the 360 degree panoramic view.

We provide additional brackets for the front and rear cameras. If the surface of your vehicle is not level enough to secure the camera, you can choose whether to use them based on your actual situation.

4. Built-in DVR function

We adopt H.265 as the new generation video compression standard

which can record up to 87 hours of video (when connected to a 128GB USB storage card)，The following are video screenshots of USB storage card playback on the computer at12:30 and 20:30 respectively，The pixel of video is 1920*1080. We won't lie and say this is a 4K resolution.

5. Support multiple signal formats for output

Our host support CVBS/AHD 720P/AHD 1080P/TVI/HDMI/(VGA for car interface) video output. The corresponding output signal can be set through the dip switch. In addition, our connector is designed with a waterproof lock buckle, which is more sturdy and durable.

This system provide RCA cable andAviation Head (4PIN) connector .you can choose the one fit for your monitor.

6. Good product performance comes from product details

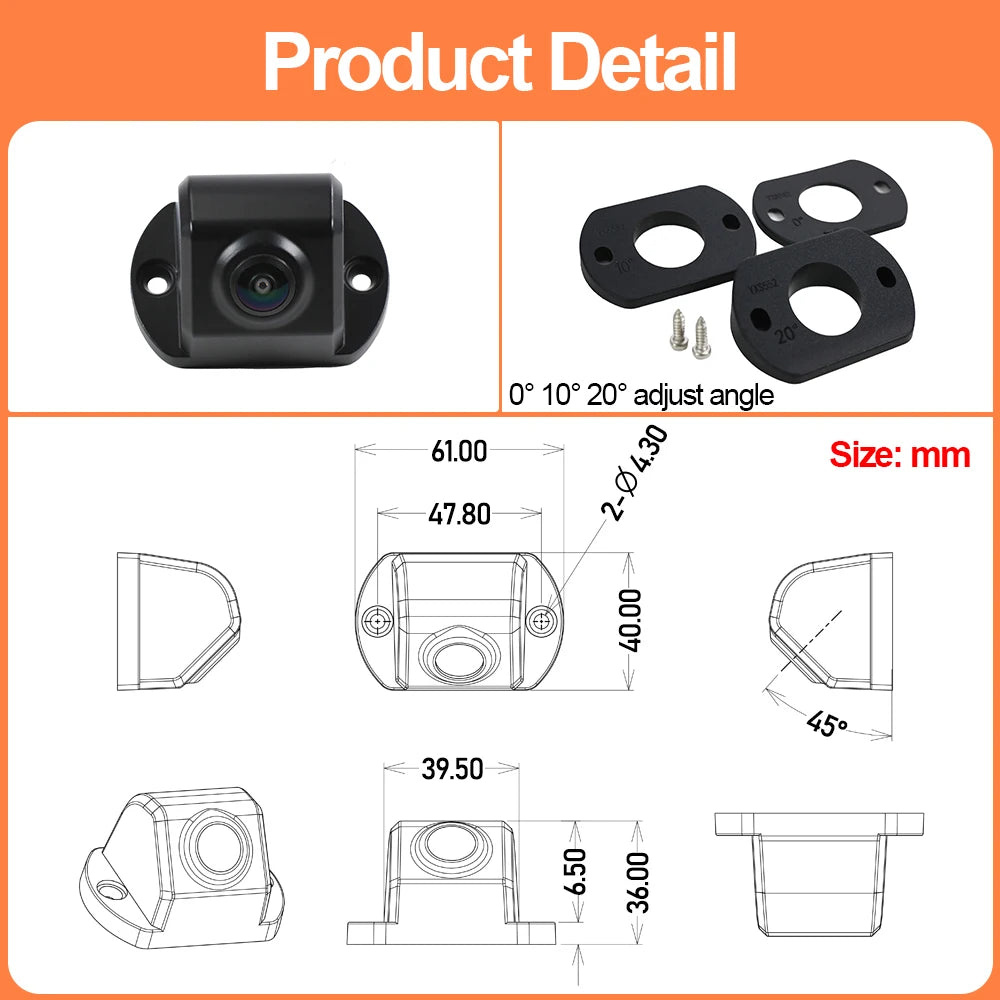

The camera housings on the front, back, left, and right sides are all made of metal, which provides better heat dissipation and durability, Each camera is also equipped with silicone pads at 0 degrees, 10 degrees, and 20 degrees for easy angle adjustment.

Our camera is better than other cameras that can adjust the angle. After installation, the lens angle will not change because once the camera angle changes, the 360 system needs to be recalibrated.

In addition, we use specially customized connectors, which are 58% smaller than traditional aviation short connectors. This means that you can install them without drilling too large holes in the car, causing less damage to your body. It is also designed to be dust-proof and splash proof, making the product more durable.

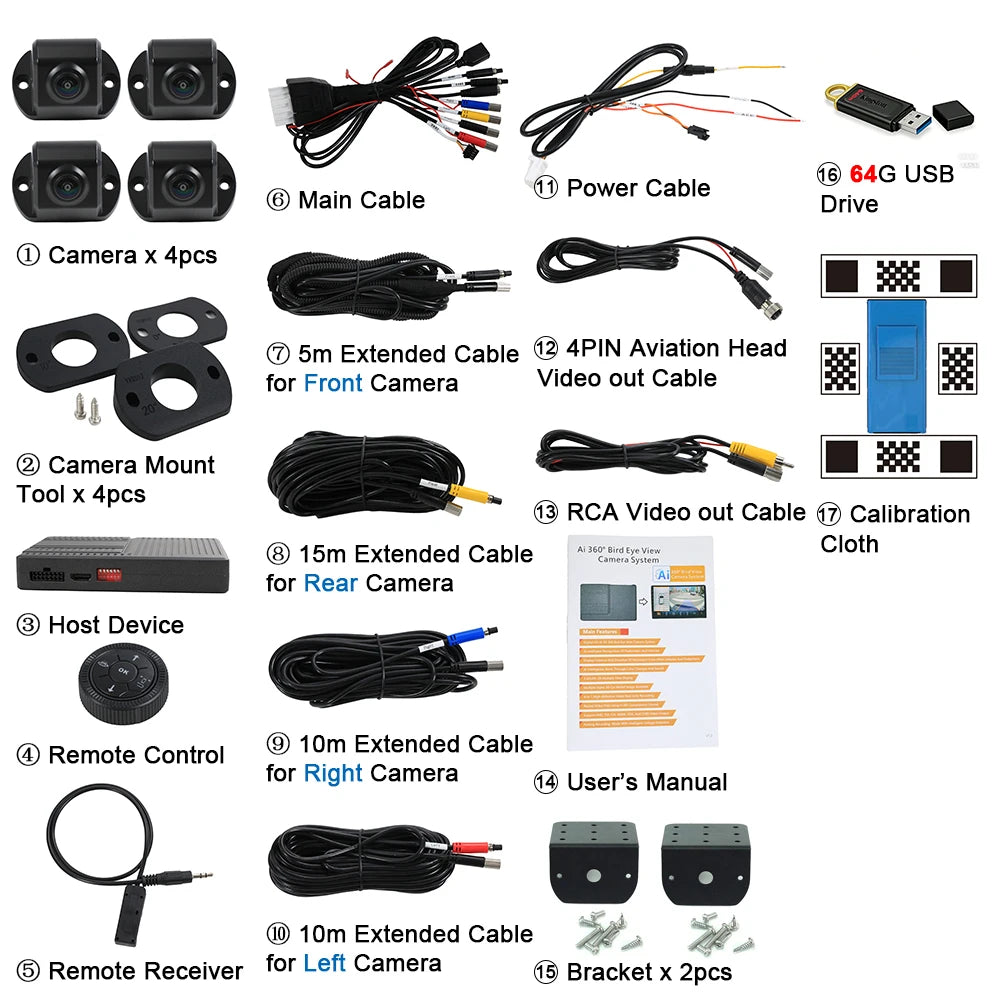

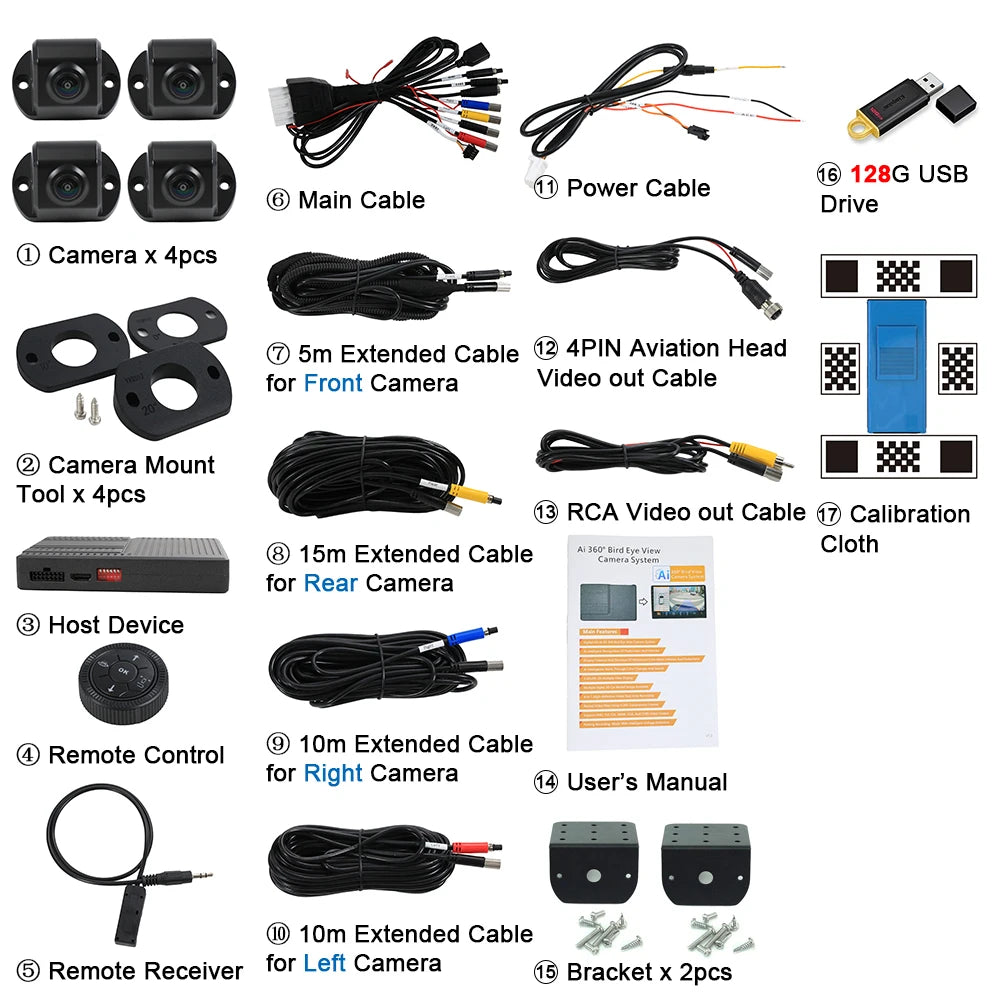

7. DV700AI 360 AI camera system packing including:

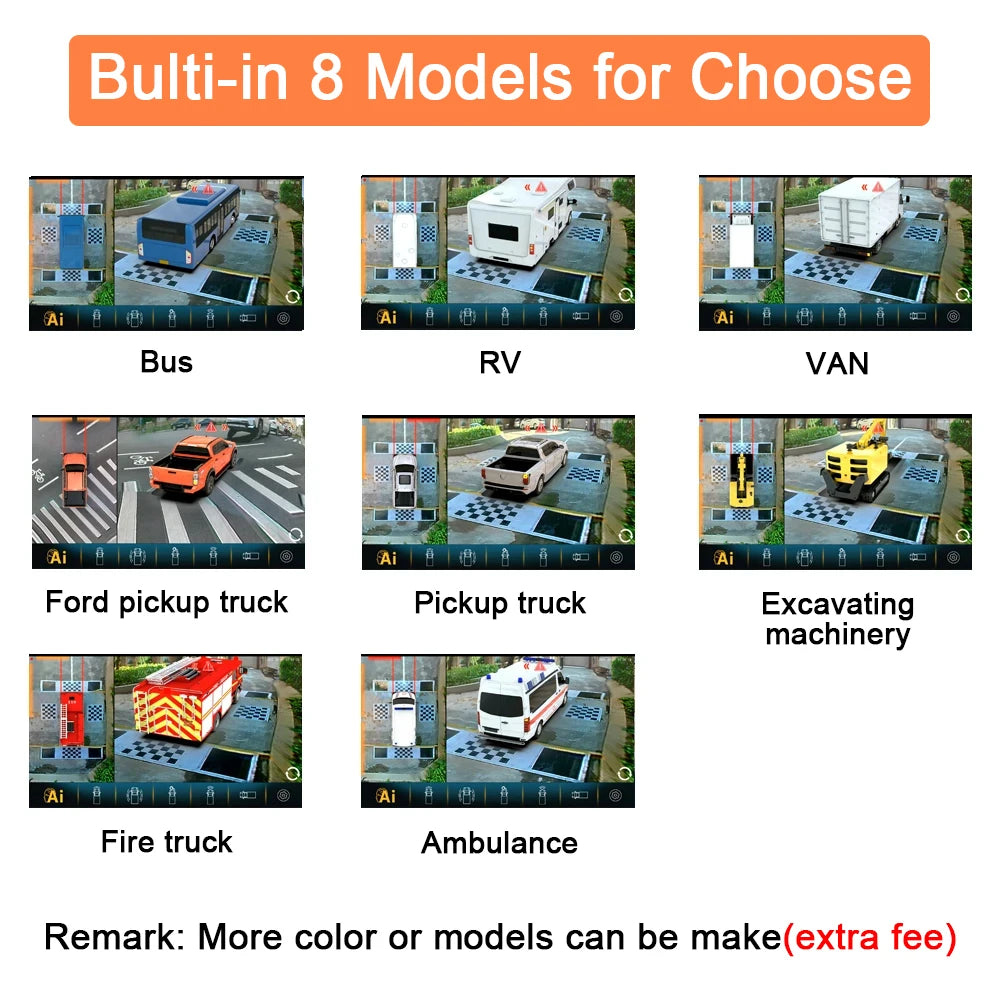

8. Multiple car models to choose from and respond to timely professional services

The system has 22 car graphics for you to choose from, and our database has 188 car models for you to choose from. The data details of the car models are as follows. If you need, you can contact our customer service to send you the corresponding car model software for upgrading. Our response time is within 12 hours. If you encounter any problems during the installation process, our technicians can provide online technical guidance to make your installation more reassuring.
